The delivered product may differ from the image above
DownloadsDamping adjustment procedure 1K2 (eye-eye / pin-eye)Damping adjustment procedure 1K2 (Macpherson upside down)
More direct control
Retains / better comfort
Ride height adjustable
Camber plates optional
45 or 52 mm strut optional
Welding plate optional

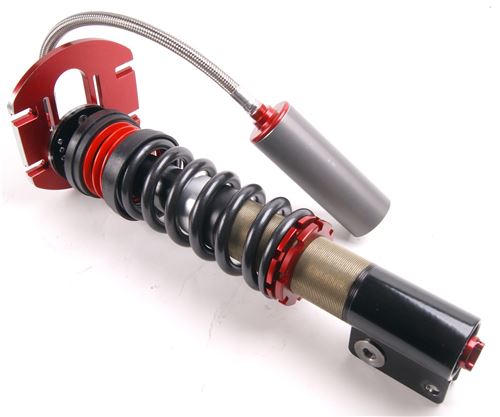

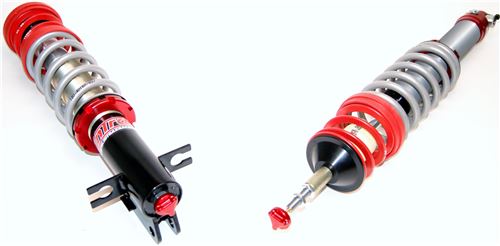

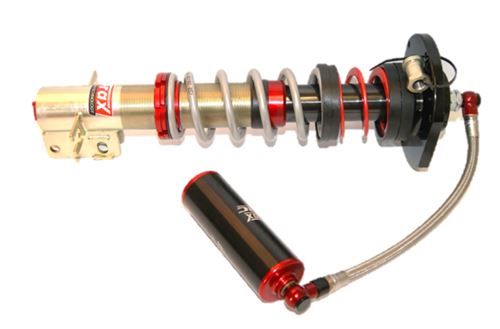

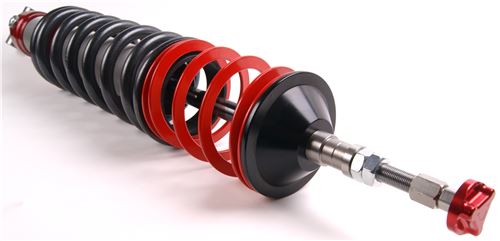

1K2 OvalracingVolkswagen Golf I (MK1/A1/Gr.A/Typ 17) - Jetta (A1 Typ 16) - Scirocco (1st gen), alle engines
All shock absorbers that Intrax manufactures are custom-built. This means the shock absorbers will only be manufactured once the specific data of the car (tyre type, use of the car, any adjustments made to the car, etc.) and the driver’s wishes are known. Based on these data, the engineers calculate/design the ideal shock absorber, which will then be manufactured.
Due to the larger diameter of the 1K2’s piston in comparison with the RSA, the adjustment can be even more refined. Unlike many competitors, Intrax deliberately opts for a single knob for the adjustment of the damping. With this single knob, you can adjust the bump (inward stroke) and rebound (outbound stroke) at the same time, in the proper pre-programmed ratio.
The 1K2 damper is fitted with an internal thermostat. The thermostat keeps the damping constant at varying temperatures. This means the damping and driving behavior remain exactly the same at various operating and ambient temperatures.
Where possible, the housing of the 1K2 shock absorber is made of high-quality aluminum. This guarantees a low weight, maximum strength and optimal cooling. Whilst designing the 1K2 shock absorber, the largest possible diameter is chosen for even more accurate damping control; usually a 52mm housing with 46mm piston. Where possible, Macpherson struts are fitted as upside-downs with a 45mm (52mm for the XL version) diameter instead of a thin piston rod that is mounted to the chassis.
The different product options
Various options are possible on the different shock absorber systems that we make. The options vary widely. Click below for a more detailed explanation.
• Black Titan coating, optimizes the functioning of the shock absorber by reducing friction and stick slip. It also protects the shock absorber because the coating is rock hard.
• ARC®, a system that makes it possible to work with a softer spring and/or setting with the associated advantages but without the disadvantages.
• EMC, no more getting out to set the shock absorbers harder or softer, but from your driver's seat.
• EHC, raise/lower the front or entire car from your car, with the option to drive at that height.
Request a quote
Would you like a quote for the options for this product? Please fill in the form below and we will contact you as soon as possible.
"*" indicates required fields
State-of-the-art suspension technology straight from the racing world, with almost 50 years of intensive experience at the highest level.
